kcc5
Class KCC_PolygonTrap

Object
  common:Generic
      common:TrapShape
          kcc5:KCC_PolygonTrap

class
TrapShape:KCC_PolygonTrap

The Polygon trap.

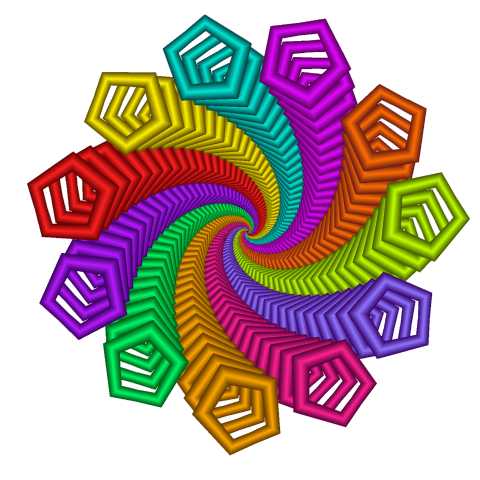

For an example of what this trap looks like, click here.

Ultra Fractal Source

Toggle UF Source Code Display

 class KCC_PolygonTrap( common.ulb:TrapShape ) {
 ; The Polygon trap.
 ; <p>
 ; For an example of what this trap looks like,
 ; <a href="../additional/kcc5/images/Polygon Trap.jpg">click here</a>.
 ;
 public:
   import "common.ulb"

   ; constructor
   func KCC_PolygonTrap( Generic pparent )
     TrapShape.TrapShape( pparent )
   endfunc

   ; call this before each sequence of values to be trapped
   func Init( complex pz )
     TrapShape.Init( pz )
   endfunc

   ; call this for each iteration being trapped
   float func Iterate( complex pz )
     TrapShape.Iterate( pz )

     pz = pz * exp( 1i * pi / 180 * ( @polygonRotation - @polygonSkew ) )
     pz = real( pz ) / sqrt( @polygonSqueeze ) + 1i * imag( pz ) * sqrt( @polygonSqueeze )
     pz = pz * exp( 1i * pi / 180 * @polygonSkew )

     if( @shape == "Polygon" )
       ztest2 = pz
       arg = atan2( ztest2 )
       widthPercent = abs(arg) / #pi
       arg = -round( arg / (2 * pi) * @polygonOrder) / @polygonOrder * (2 * pi)
       ztest2 = ztest2 * exp( 1i * arg )
     elseif( @shape == "Rounded Polygon" )
       arg = atan2(pz)
       widthPercent = abs( arg ) / #pi
       ztest2 = cabs( pz ) + @roundedAmount * sin( arg * @polygonOrder )
     elseif( @shape == "Circle" )
       widthPercent = abs( atan2( pz ) ) / #pi
       ztest2 = cabs( pz )
     endif

     minDist = abs( real( ztest2 ) - @polygonSize )
     trapWidth = @polygonWidth + (@polygonWidthDelta * widthPercent)

     if( minDist < trapWidth )
         m_LastChannel = m_Iterations
         m_Texture = minDist / trapWidth
         return minDist
     endif

     return 1e20
   endfunc

   float func GetTextureValue()
     return m_Texture
   endfunc

 protected:
   complex ztest2
   float trapWidth
   float arg
   float widthPercent
   float minDist
   float m_Texture

 default:
   title = "Polygon Trap"

   int param v_KCC_PolygonTrap
     caption = "Version (KCC_PolygonTrap)"
     default = 100
     hint = "This version parameter is used to detect when a change has been \
             made to the formula that is incompatible with the previous version. \
             When that happens, this field will reflect the old version number to \
             alert you to the fact that an alternate rendering is being used."
     visible = @v_KCC_PolygonTrap < 100
   endparam

   param shape
     caption = "Polygon Shape"
     default = 0
     enum = "Polygon" "Rounded Polygon" "Circle"
     hint = "The type of polygon to draw."
   endparam

   int param polygonOrder
     caption = "Order"
     default = 6
     hint = "The number of sides to the polygons.  While values of 1 and 2 \
             are technically not valid polygons, these values may produce \
             intersting results."
     visible = (@shape != "Circle")
   endparam

   float param polygonSize
     caption = "Size"
     default = 0.5
     hint = "Size of the polygons."
   endparam

   float param polygonWidth
     caption = "Width"
     default = 0.02
     hint = "Width of the polygons."
   endparam

   float param polygonWidthDelta
     caption = "Width Delta"
     default = 0.0
     hint = "Amount to vary the width around the polygons."
   endparam

   float param polygonRotation
     caption = "Rotation"
     default = 0.0
     visible = (@shape != "Circle")
     hint = "Amount to rotate the orientation of the polygons."
   endparam

   float param polygonSqueeze
     caption = "Sqeezing"
     default = 1.0
     hint = "Polygon Squeezing Ratio"
   endparam

   float param polygonSkew
     caption = "Skewing"
     default = 0.0
     hint = "Polygon Squeezing Angle"
   endparam

   float param roundedAmount
     caption = "Corner Rounding Amount"
     default = 0.1
     hint = "Amount of rounding of the polygons."
     visible = (@shape == "Rounded Polygon")
   endparam
 }


Constructor Summary

KCC_PolygonTrap()

KCC_PolygonTrap(Generic pparent)
constructor

Method Summary

float	GetTextureValue() Get texture value.
void	Init(complex pz) call this before each sequence of values to be trapped
float	Iterate(complex pz) call this for each iteration being trapped

Methods inherited from class common:TrapShape

GetColorChannel, GetTransformedPoint, IterateSilent, SetThreshold

Methods inherited from class common:Generic

GetParent

Methods inherited from class Object

Constructor Detail

KCC_PolygonTrap

public KCC_PolygonTrap(Generic pparent)

constructor

KCC_PolygonTrap

public KCC_PolygonTrap()

Method Detail

Init

public void Init(complex pz)

call this before each sequence of values to be trapped

Overrides:

Init in class TrapShape

Iterate

public float Iterate(complex pz)

call this for each iteration being trapped

Overrides:

Iterate in class TrapShape

GetTextureValue

public float GetTextureValue()

Description copied from class: TrapShape

Get texture value.

Ordinarily, a trap shape does not have a native texture (it is flat). Some formulas may pair trap shapes with trap textures, and may need more information about trap textures when trap shapes are nested via TrapShapeMerge. This function provides support for accessing texture information.

Overrides:

GetTextureValue in class TrapShape

Returns:

the texture value for the last point used (i.e. call GetTextureValue() after calling Iterate(), not before)
