Class KCC_RingSegmentsTrap

Object
  common:Generic
      common:TrapShape
          kcc5:KCC_RingSegmentsTrap

class
TrapShape:KCC_RingSegmentsTrap

The Ring Segments trap.

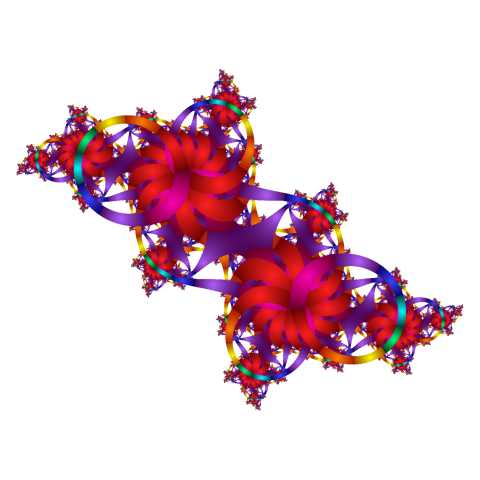

For an example of what this trap looks like, click here.

Ultra Fractal Source

Toggle UF Source Code Display

 class KCC_RingSegmentsTrap( common.ulb:TrapShape ) {
 ; The Ring Segments trap.
 ; <p>
 ; For an example of what this trap looks like,
 ; <a href="../additional/kcc5/images/Ring Segments Trap.jpg">click here</a>.
 ;
 public:
   import "common.ulb"

   ; constructor
   func KCC_RingSegmentsTrap( Generic pparent )
     TrapShape.TrapShape( pparent )
   endfunc

   ; call this before each sequence of values to be trapped
   func Init( complex pz )
     TrapShape.Init( pz )

     Phi = #pi * 0.125
     Ro = @ringRadius + @ringThickness
     Py = @ringRadius * sin( Phi )
     Px = @ringRadius * cos( Phi )
     Dsqd = @ringRadius * @ringRadius + Ro * Ro - 2 * Ro * Px
   endfunc

   ; call this for each iteration being trapped
   float func Iterate( complex pz )
     TrapShape.Iterate( pz )

     float d = abs( cabs( pz ) - @ringRadius )
     if( d < @ringThickness )
       float x = real( pz )
       float y = imag( pz )
       float Xabs = abs( x )
       float Yabs = abs( y )
       float WtoPsqd = 0

       if (Xabs >= Yabs)
         WtoPsqd = (Xabs-Px) * (Xabs-Px) + (Yabs-Py) * (Yabs-Py)
       else
         WtoPsqd = (Xabs-Py) * (Xabs-Py) + (Yabs-Px) * (Yabs-Px)
       endif

       if( x >= 0 && y >= 0 )
         if( Xabs >= Yabs )
           m_LastChannel = 0
         else
           m_LastChannel = 1
         endif
       elseif (x < 0 && y >= 0)
         if (Xabs < Yabs)
           m_LastChannel = 2
         else
           m_LastChannel = 3
         endif
       elseif (x < 0 && y < 0)
         if (Xabs >= Yabs)
           m_LastChannel = 4
         else
           m_LastChannel = 5
         endif
       else
         if (Xabs < Yabs)
           m_LastChannel = 6
         else
           m_LastChannel = 7
         endif
       endif

       m_Texture = sqrt( WtoPsqd / Dsqd )
       return d
     else
         return 1e20        ; return a very large distance
     endif
   endfunc

   float func GetTextureValue()
     return m_Texture
   endfunc

 protected:
   float Phi
   float Ro
   float Px
   float Py
   float Dsqd
   float m_Texture

 default:
   title = "Ring Segments Trap"

   int param v_KCC_RingSegmentsTrap
     caption = "Version (KCC_RingSegmentsTrap)"
     default = 100
     hint = "This version parameter is used to detect when a change has been \
             made to the formula that is incompatible with the previous version. \
             When that happens, this field will reflect the old version number to \
             alert you to the fact that an alternate rendering is being used."
     visible = @v_KCC_RingSegmentsTrap < 100
   endparam

   float param @ringRadius
     caption = "Ring Radius"
     default = 1.0
     hint = "The radius to the midline of the ring."
   endparam

   float param @ringThickness
     caption = "Ring Thickness"
     default = 0.1
     hint = "The thickness of the ring."
   endparam
 }


Constructor Summary

KCC_RingSegmentsTrap()

KCC_RingSegmentsTrap(Generic pparent)
constructor

Method Summary

float	GetTextureValue() Get texture value.
void	Init(complex pz) call this before each sequence of values to be trapped
float	Iterate(complex pz) call this for each iteration being trapped

Methods inherited from class common:TrapShape

GetColorChannel, GetTransformedPoint, IterateSilent, SetThreshold

Methods inherited from class common:Generic

GetParent

Methods inherited from class Object

Constructor Detail

KCC_RingSegmentsTrap

public KCC_RingSegmentsTrap(Generic pparent)

constructor

KCC_RingSegmentsTrap

public KCC_RingSegmentsTrap()

Method Detail

Init

public void Init(complex pz)

call this before each sequence of values to be trapped

Overrides:

Init in class TrapShape

Iterate

public float Iterate(complex pz)

call this for each iteration being trapped

Overrides:

Iterate in class TrapShape

GetTextureValue

public float GetTextureValue()

Description copied from class: TrapShape

Get texture value.

Ordinarily, a trap shape does not have a native texture (it is flat). Some formulas may pair trap shapes with trap textures, and may need more information about trap textures when trap shapes are nested via TrapShapeMerge. This function provides support for accessing texture information.

Overrides:

GetTextureValue in class TrapShape

Returns:

the texture value for the last point used (i.e. call GetTextureValue() after calling Iterate(), not before)
